Chart 1 – Arr 1 Non HC Piping Plan

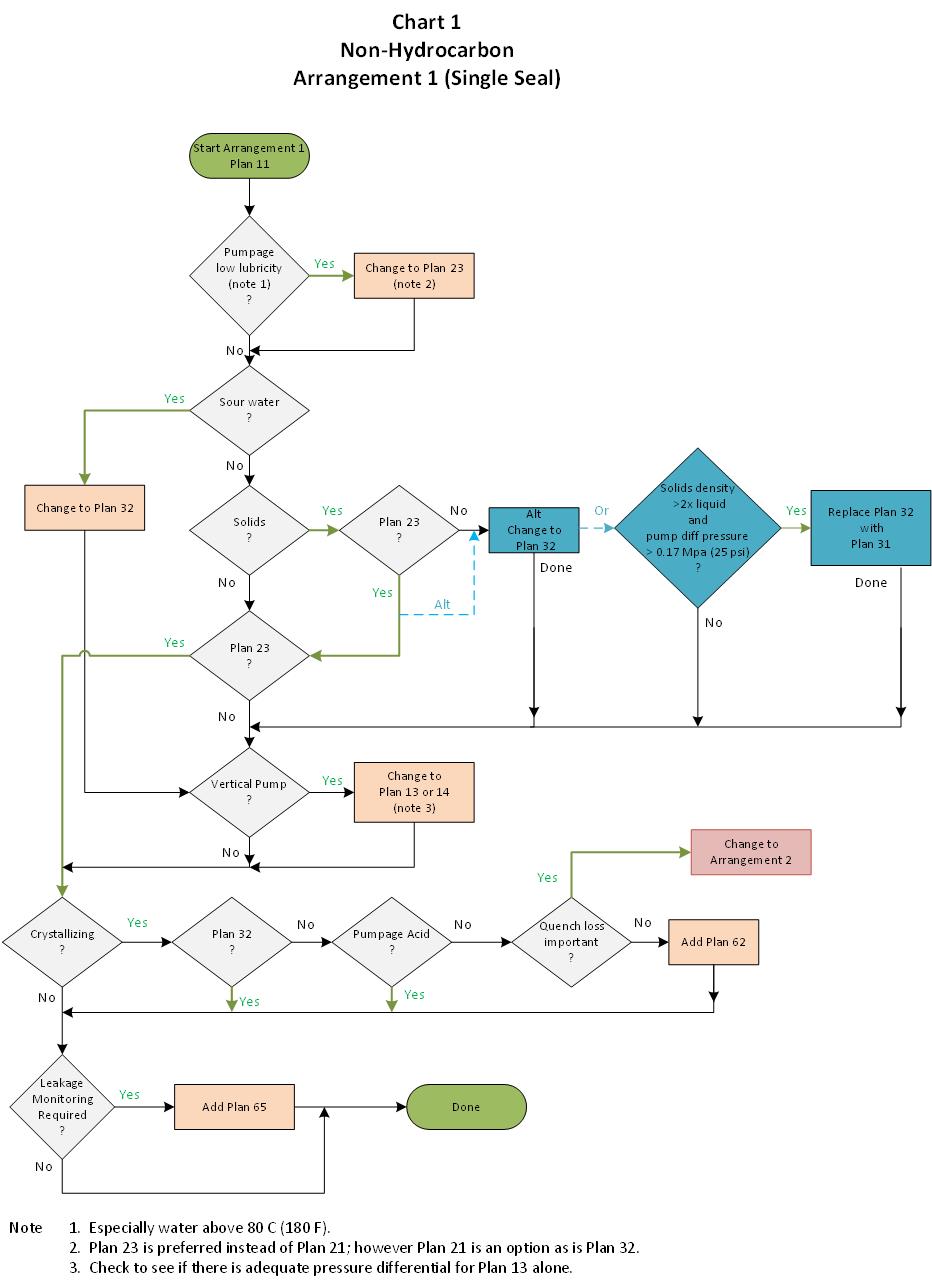

Chart 1. Arrangement 1 Piping Plans for Non HC
End Face Mechanical Seals and related technologies
Chart 1. Arrangement 1 Piping Plans for Non HC
